Teleco Demo Application

Learn how the Pink Mobile demo app models fine-grained authorization with Permit.io, from resources and roles to relationships and conditions. This page is for developers who want to see a complete policy model built in code with the Permit Node.js SDK before they design their own.

Pink Mobile is a mobile plan management app built with Next.js. You switch between three personas (Customer, Representative, and Manager) to see what each one can do. The code is in the pink-mobile-demo-app repository.

The following interactive demo shows the app in action:

How the authorization model is organized

The Pink Mobile setup splits authorization into three parts. Each part has its own section on this page:

Part	What it contains	Where Pink Mobile defines it
Policy model	Resources, actions, roles, relationships, role derivations, condition sets, and the rules that connect them	setup.js, through the Permit API
Authorization data	Users, role assignments, and relationship tuples	setup.js, through the Permit API
Enforcement	Permission checks and filtered queries in the app	lib/authorizer.js

Both the policy model and the authorization data are stored in the Permit control plane, which runs in Permit's cloud. The Permit control plane syncs both to the policy decision point (PDP), the data plane component that runs in your network and answers each check. To learn how the two planes work, see Control & Data planes.

tip

Pink Mobile creates everything with the Permit Node.js SDK. You can create the same policy model in the Permit dashboard.

Configure the policy model

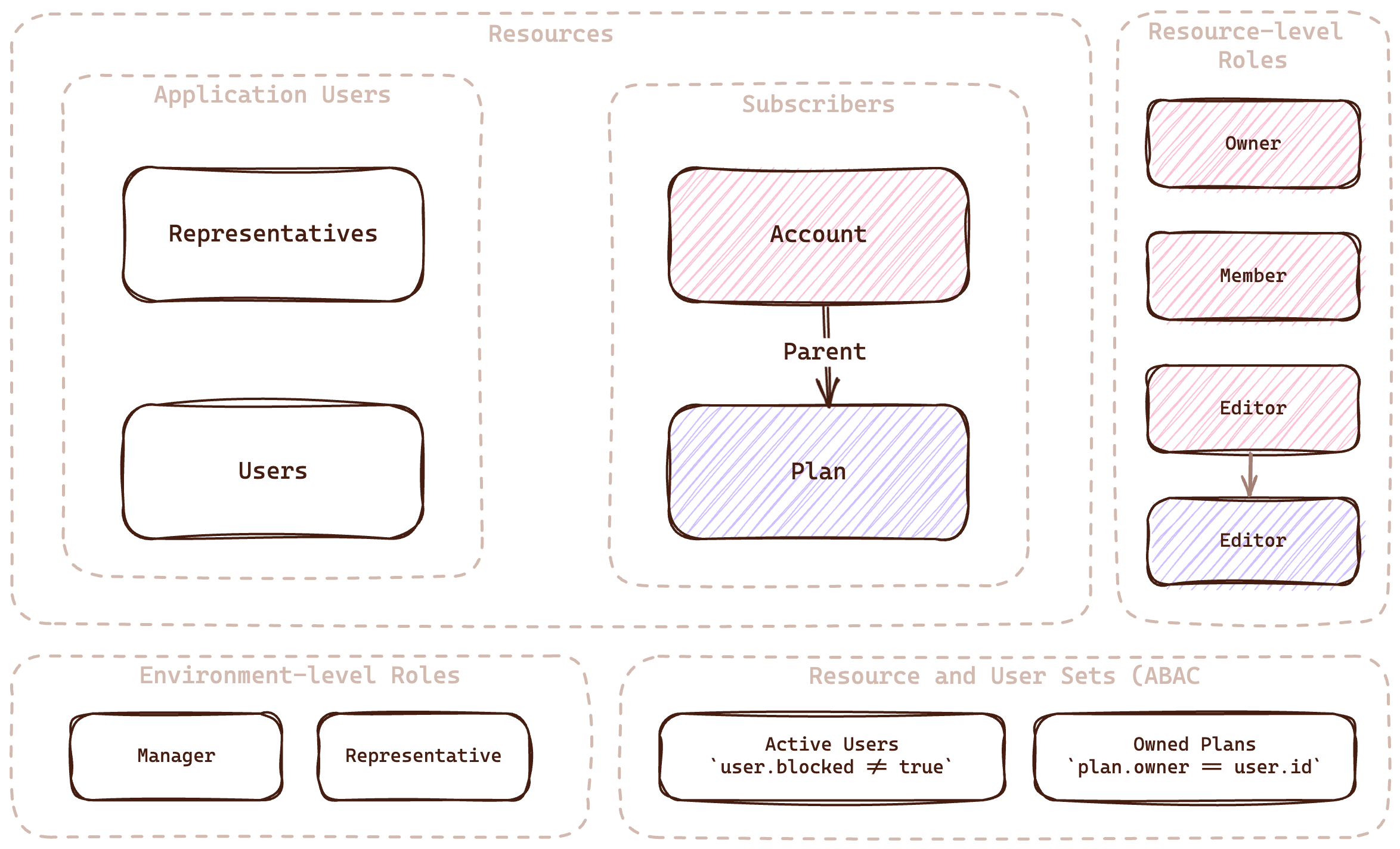

The policy model defines what can be protected and who can do what. The following diagram shows the Pink Mobile entities:

info

The full configuration is in the setup.js file.

Resources

A resource is a type of object that you protect. Pink Mobile has four resources:

Resource	What it represents
Users	Customers who can have a representative manage their plan
Representatives	Agents who manage customers
Account	The top-level resource for everything that belongs to a customer, such as personal details
Plan	The customer's mobile plan

The following code from setup.js creates the Representatives resource with its list and assign actions:

await permit.api.resources.create({
    key: "representatives",
    name: "Representatives",
    actions: {
      list: {
        name: "List",
      },
      assign: {
        name: "Assign",
      },
    },
  });

Resource relationships

The Account resource is the parent of the Plan resource. A relationship lets permissions on an account apply to the plan that belongs to it. For example, a user who can edit an account can also edit the account's plan.

The following code declares account as the parent of plan when it creates the Plan resource. The ... lines stand for fields that the excerpt omits:

await permit.api.resources.create({
    key: "plan",
    name: "Plan",
    ...
    relations: {
      parent: "account",
    },
  });

Roles

Roles group permissions on resources. Pink Mobile uses two kinds of roles.

Environment-level roles

An environment-level role grants permissions on every instance of a resource type in the environment.

Role	Permissions
Manager	Assign and list representatives, create and list users, view accounts and plans
Representative	List users

The following code creates the Manager role:

await permit.api.roles.create({
    key: "manager",
    name: "Manager",
    permissions: [
      "representatives:assign",
      "account:view",
      "users:create",
      "representatives:list",
      "plan:view",
      "users:list",
    ],
  });

Resource-level roles

A resource-level role grants permissions only on the resource instances a user is assigned to. This page writes resource-level roles as Resource#Role.

Role	Permissions
Account#Owner	view and manage on the account
Account#Member	view on the account
Account#Editor	view on the account, and derives Plan#Editor on the account's plan
Plan#Editor	view and change on the plan

The following code defines the Plan#Editor role as part of the Plan resource:

await permit.api.resources.create({
    key: "plan",
    name: "Plan",
    ...
    roles: {
      editor: {
        name: "Editor",
        permissions: ["view", "change"],
        ...
      },
    },
    ...
  });

Role derivations

A role derivation grants a role on a related resource. Pink Mobile derives Plan#Editor from Account#Editor: every user with the Account#Editor role on an account gets the Plan#Editor role on the plan whose parent is that account.

The following code adds the derivation to the Plan#Editor role with granted_to:

await permit.api.resources.create({
    key: "plan",
    name: "Plan",
    ...
    roles: {
        editor: {
        name: "Editor",
        permissions: ["view", "change"],
        granted_to: {
            users_with_role: [
            {
                role: "editor",
                on_resource: "account",
                linked_by_relation: "parent",
            },
            ],
        },
        },
    },
    ...
});

Conditions

Condition sets group users or resources by their attributes. You grant permissions to a condition set in the policy, and the PDP includes a user or resource in the set when its attributes match the conditions.

User sets

A user set is a condition set based on user attributes. Pink Mobile creates two user sets:

User set	Condition	Description
Blocked Users	user.blocked == true	Users whose account is blocked
Active Users	user.blocked == false	Users whose account is active

The following code creates the Blocked Users user set:

await permit.api.conditionSets.create({
    key: "blocked_users",
    name: "Blocked Users",
    type: "userset",
    conditions: {
      allOf: [{ allOf: [{ "user.blocked": { equals: true } }] }],
    },
});

Resource sets

A resource set is a condition set based on resource attributes. A resource set condition can compare a resource attribute with a user attribute, which lets you check ownership. Pink Mobile creates one resource set:

Resource set	Condition	Description
Owned Plans	resource.owner == user.key	Plans whose owner attribute matches the user's key

The following code creates the Owned Plans resource set:

await permit.api.conditionSets.create({
    key: "owned_plans",
    name: "Owned Plans",
    type: "resourceset",
    resource_id: "plan",
    conditions: {
      allOf: [
        { allOf: [{ "resource.owner": { equals: { ref: "user.key" } } }] },
      ],
    },
});

Policy rules

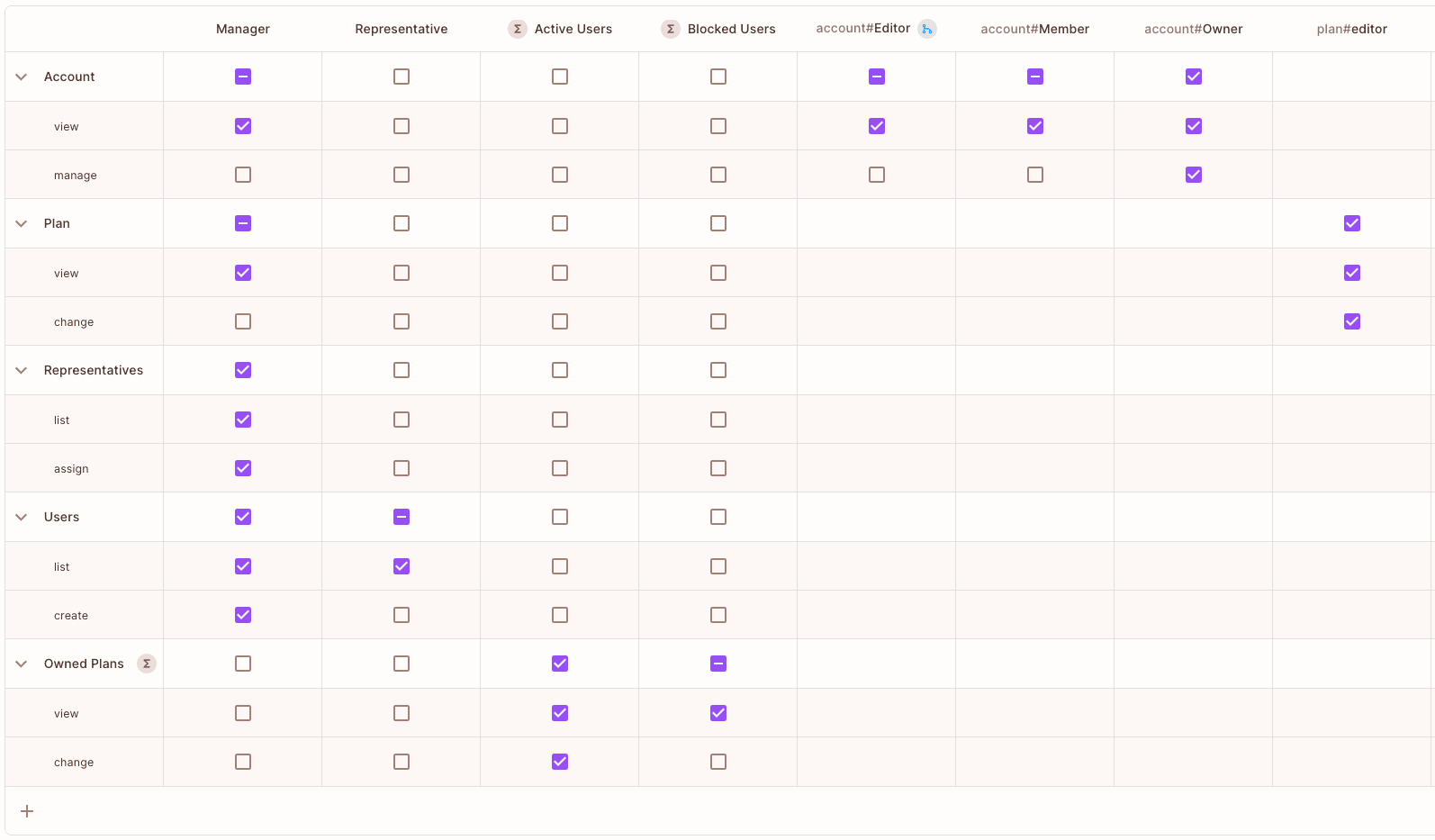

The policy rules connect roles and condition sets to the permissions they grant. After setup.js runs, the Policy Editor in the Permit dashboard shows this table:

The following code from setup.js grants the Active Users user set the view and change permissions on the Owned Plans resource set:

await permit.api.conditionSetRules.create({
    user_set: "active_users",
    resource_set: "owned_plans",
    permission: "plan:view",
});
await permit.api.conditionSetRules.create({
    user_set: "active_users",
    resource_set: "owned_plans",
    permission: "plan:change",
});

Sync the authorization data

The PDP needs data about the app's users and objects to evaluate the policy model: users with their attributes, role assignments, and relationships between resource instances. Pink Mobile syncs this data in setup.js.

Users

Each user needs a unique key that the app uses in permission checks. In a production app, you sync users when they sign up or sign in through your authentication provider. See Sync users. Pink Mobile creates six users in setup.js instead.

The following code syncs the Sirius Black user:

permit.api.users.sync({
    email: "sirius@pink.mobile",
    key: "sirius@pink.mobile",
    first_name: "Sirius",
    last_name: "Black",
    attributes: {},
});

User roles

A role assignment gives a user an environment-level role or a resource-level role on one instance.

The following code assigns the environment-level representative role to sirius@pink.mobile in the default tenant:

await permit.api.roleAssignments.assign({
    role: "representative",
    user: "sirius@pink.mobile",
    tenant: "default",
});

The following code assigns the resource-level owner role on the account:harry instance, which is Account#Owner, to the harry@potter.io user:

await permit.api.roleAssignments.assign({
    role: "owner",
    resource_instance: `account:harry`,
    user: "harry@potter.io",
    tenant: "default",
});

Relationship tuples

A relationship tuple links two resource instances with a relation. The Plan#Editor role derivation applies only to plans that have a parent relationship tuple with an account.

The following code makes the account:harry instance the parent of the plan:harry instance:

await permit.api.relationshipTuples.create({
    subject: `account:harry`,
    object: `plan:harry`,
    relation: "parent",
    tenant: "default",
})

Enforce decisions in the app

Pink Mobile enforces the policy in lib/authorizer.js in two ways: a permission check before each operation, and filtered queries that return only the data a user may see.

Check permissions with permit.check()

The authorize function in lib/authorizer.js passes the current user, the action, and the resource to permit.check(). The app calls authorize before operations such as changing a plan.

export const authorize = async (user, action, resource) => {
  return permit.check(user, action, resource);
};

permit.check() sends the request to the PDP. The PDP evaluates the policy model with the synced data and returns true when the user may perform the action. See Check permissions.

Filter data by role assignments

To list only the data a user may see, Pink Mobile queries role assignments through the Permit API. For example, the following code lists every assignment of the owner role in the default tenant. The listUsers function in lib/authorizer.js starts from this list:

const owners = await permit.api.roleAssignments.list({
    tenant: "default",
    role: "owner",
  });

For other filtering approaches, see Data filtering.

Run Pink Mobile locally

The Pink Mobile repository README has the steps to run the app. In summary, you:

1. Install the dependencies with npm install.
2. Add your environment API key and the PDP URL to the .env file. See Get your API key.
3. Run node setup to create the policy model and data in your Permit environment.
4. Start a local PDP container. See Run the PDP.
5. Run npm run dev and open http://localhost:3000.

Verify: In the app, switch between the Customer, Representative, and Manager tabs. Each persona sees only the operations that the policy table allows.

Next steps

• Build ReBAC policies with resource roles, relations, and role derivations.
• Build ABAC policies with user sets and resource sets.
• Healthcare Demo Application for another app that combines RBAC, ABAC, and ReBAC.
• Ask questions in the Permit Slack community.
